How to Install Corbels under Granite | 6 Step Guide By Expert With Images

In terms of architecture, corbels are the supporting weight underneath the buildings. Before starting, you must be familiar with the corbels. How they work, and how to install corbels under granite? And where else can it be used except granite? In other words, corbels are support brackets that install underneath the heavy architecture to support their weight. At this point, people are confused about brackets and corbels. The frame gives only support to weights, but corbels provide versatility, value, and different designs according to place. In other words, both have the same functions. Like corbels, brackets also come in a variety of designs.

To acknowledge with corbels, you must be familiar with down terms:

  • Console: These corbels are the fancy sister of the corbel. They don’t provide much support due to their smaller size.
  • Exterior: Corbels used outside to provide support to shelves, ceilings, windows, fireplace mantels, and porches
  • Interior: Corbels provide supports to ceilings, doors, windows, countertop corbel, fireplace mantels, and islands.

Types of Corbels

Wood corbels: These corbels are either handmade or premade, used to enhance the design of cabinets, countertops when they match the finish of the cabinets.

Mission Style: These corbels are designed by vertical lines and flat, recessed panels. In other words, it is also known as the shaker style.

Curved: The designers merged curves in corbels give a more clean and attractive look.

Acanthus leaf: The classic greek architecture design gives you a leaf design. This design will increase the grace of your island.

Modern: These corbels have a sleek design that will provide a seamless look to your island.

Size of corbels for granite countertops:

LengthNo more than 30.”
Side- to- Side spaceAbout 24″
Knee wall4 inches wide
Overhang the knee wall20″
Granite brackets back from the edge3″ – 4.”
The total size of granite brackets16″

 Kitchen Island

  • Corbels are often used to transform your kitchen into a furniture style piece by combining corbels with wainscot panels and decorative legs.
  • The rustic eat-in kitchen has traditional wooden brackets supporting the island butcher block countertop.

Room Dividers

  • Corbels are an alternating way for creating berries to separate doors and walls.
  • Mount corbels near your kitchen to designate the boundary between them.

Tools to Install Corbels under Granite

Measure Tape

Pencil

Electric Driller

Grit paper

Screwdrivers

Tri square

Table saw

Sale
DEWALT 10-Inch Table Saw, 32-1/2-Inch Rip Capacity...
4,181 Reviews
DEWALT 10-Inch Table Saw, 32-1/2-Inch Rip Capacity...
  • Your purchase includes one Dewalt table saw, 10inch 24-tooth carbide blade, rolling stand, push stick, miter gauge, rip fence, 2x blade wrenches, blade guard assembly manual
  • Other Specs: Max rip to left of blade – 22inch | Max rip to right of blade – 32-1/2inch | Max width of Dado – 13/16inch | Arbor size – 5/8inch | Amps – 15 | Depth of cut at 45inch – 2-1/4inch | Depth of cut at 90° – 3-1/8inch | No Load Speed: 4800 RPM
  • Rolling stand designed for easy set up and breakdown with excellent stability

Band saw

Sale
DEWALT 20V MAX* Portable Band Saw, Tool Only...
1,646 Reviews
DEWALT 20V MAX* Portable Band Saw, Tool Only...
  • 2-1/2-inch cut capacity of the metal band saw cuts up to 2-inch SCH 40 pipe
  • Centered handle position of the portable band saw provides superior balance and ergonomics and allows for more accurate cuts and less user fatigue
  • LED Work Light with 20 second delay illuminates dark work surfaces for accurate cutting of DEWALT band saw.

Pocket hole jig

Kreg Pocket Hole Jig 320 (Pocket Hole Jig 320)
8,919 Reviews
Kreg Pocket Hole Jig 320 (Pocket Hole Jig 320)
  • Portable Jig for creating pocket-hole joints
  • Secure positioning with anti-slip base and included clamp adapter
  • Simple to set up and easy to use with material-thickness stops for common DIY materials: 1/2", 3/4", 1 1/2"

How to Install Corbels under Granite

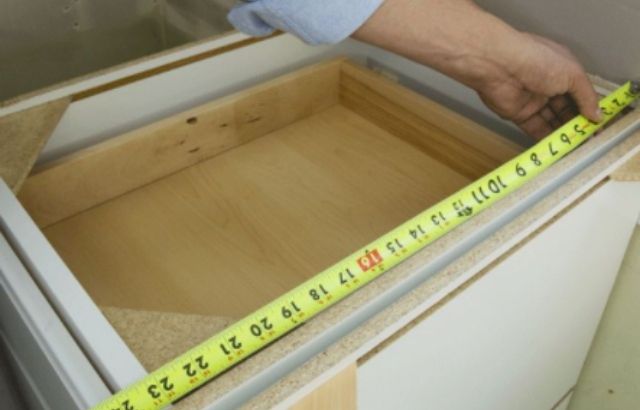

Step 1: Measurement

  • First of all, measure the length from the edge of the cabinet to the countertop’s edge.
  • If there is any lip, then measure inside the lip.
  • The point must be wide enough to span under the countertop.
  • Measure the length of the corbels; each of 36″ support is needed.
  • Measure the length of the support required.
How to Install Corbels under Granite

Step 2: Cutting

  • Cut a ¾ inch of hardwood.
  • Measure the width from both ways.
  • If you measure 10 inches, then measure 9 inches of plywood by 9 inches.
  • If your countertop is square, then take square corbels. The shape of the corbel depends on the countertop shape.
  • Use table saw for square measurement of countertop and corbels.
  • Now next step is to select material hardwood or plywood? Which one do you prefer?

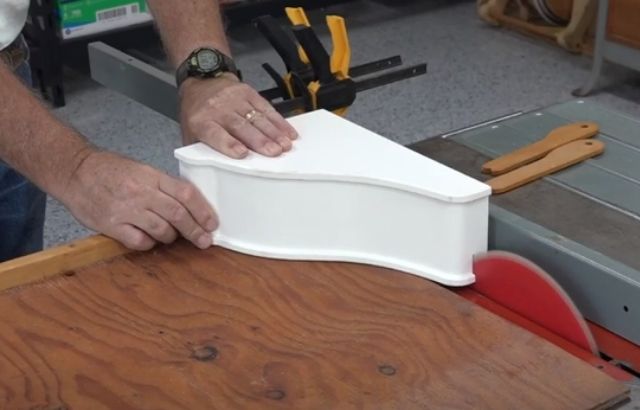

how to install corbels in doorway

Plywood: Plywood is the first choice of cabinet-makers.

  • Good quality plywood is long-lasting for more than 150 years.
  • Plywood holds up the edges for a more extended period.

Hardwood

  • Some cabinet makers also choose hardwood for corbels.
  • Hardwood panels can be used to cut corbels.
  • Hardwood looks better than plywood.
  • If it’s not appropriately drilled, it can split.
  • It costs significantly more.
  • Now it’s on you which one you prefer for your corbels countertop.

Step 3: Draw, cut, and finish

  • Now draw a curve onto the square piece of plywood/hardwood from corner to corner.
  • You can make any curve; I will prefer a French curve.
  • Use a band saw to cut the curve.
  • Then use grit paper for sanding it correctly. You can use a 100-grit paper for sanding; it will help the primer stick on the corbel wood.
  • When making a French curve, it is not necessary to make it perfect as its curve will adjust the points.
  • After sanding, you can finish the corbels for efficiency.
how to install corbels on brick

Step 4: Drill

  • Place the curve under the counter.
  • Please place it in a position that the French curve is facing outward.
  • Now the square edge of the French curve should be on the opposite side of the cabinet.
  • One square edge must be flush with the end of the countertop.
  • Now place the plywood corbel where you want to support.
  • Mark off the spacing between each corbel.
  • Now place a tri square to make sure the wood corbel is vertical.
  • Trace around the corbel to flush against the back of the cabinet.
  • Now remove the corbel.
  • As you see the marked point, Drill three holes around the tracing. The holes will penetrate through the cabinets, where you have to screw it off inside the cabinets.
adding corbels to kitchen cabinets

Step 5: Installation

  • In this step, place a pocket hole jig on the corbel.
  • Drill three holes upward from the corbel.
  • Ask somebody to hold the corbel accurately from the front and put a screw.
  • Now go on the front side of the cabinets.
  • Remove any obstacles from the cabinets.
  • Now put screws in the corbels to fix it and tell your assistant to tighten it from the other side of the cabinets.
  • You can pre-drill holes if you are not satisfied with your driller.
  • By following the whole procedure, you can install it on other sides under the granite countertop.

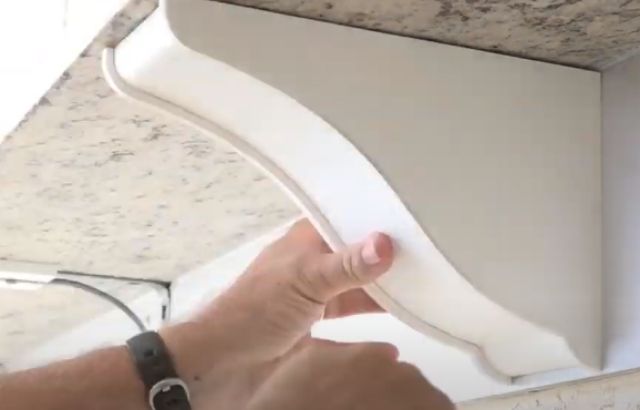

corbels for pre installed countertops

Step 6: Finish the job

  • Screw on all the corbels from the inside of the cabinet.
  • Using pocket holes and screws to finish the screwing from the top of the corbel to the cabinets down to support it.
  • Granite countertops should have pre-drilled holes on the underside of the countertops for mounting purposes.
  • Attach the brackets for the countertop with screws and a screwdriver.
  • Now put epoxy glue on the shelf and attach a granite countertop to the shelf. Epoxy glue provides bonding support as the support stone offers.

How to Install Corbels under Granite: Frequently Asked Questions

Do I need corbels for granite countertops?

This question has 2 replies.

  • Yes: If your granite countertop is thickened, then 2″. Similarly, if your countertop has 2 cm thick, it’s recommended to hang support because the overhang exceeds 6 inches.
  • No: If your granite countertop is 3cm thick, granite can have an 8 to 10 inches overhang, which doesn’t need any support.

 For granite countertops, it’s not a must to use corbels. But if you have big sizes than 10″, then you will need support for your countertops. In most cases, support is placed underneath if the size of the countertop is 6″.

How many inches can granite overhang without support?

If your granite countertop is thickened, then 2″. Similarly, if your countertop has 2 cm thick, it’s recommended to hang support because the overhang exceeds 6 inches.

 If your granite countertop is 3cm thick, granite can have an 8 to 10 inches overhang, which doesn’t need any support.

What adhesive do you use to install granite countertops?

Epoxy glue is one of the most useable adhesives you can install on granite countertops. It provides a bond that is as strong as the stone itself.

Do you need support for the granite overhang?

This question has 2 answers.

Yes: If your granite countertop is thickened, then 2″. Similarly, if your countertop has 2 cm thick, it’s recommended to hang support because the overhang exceeds 6 inches.

No: If your granite countertop is 3cm thick, granite can have an 8 to 10 inches overhang, which doesn’t need any support.

For granite countertops, it’s not a must to use corbels. But if you have big sizes than 10″, then you will need support for your countertops. In most cases, support place underneath if the size of the countertop is 6″.

Conclusion

To conclude this topic, Corbels under granite are brackets support which is available in a variety of designs. Above, I mentioned all designs you can choose to enhance the grace of your kitchen. Corbels use in different places can either use them on the ceiling to support ceiling designs or use them in windows to hold on to the window. You can use corbels on the kitchen island to support the island, and you can use corbel support underneath the countertop. Now you know how to install corbels under granite using different tools and techniques.
